Details

---

Recognized as the global standard, the Welichi WLD programme is fully Weldcraft compatible
Torch Packages
Specific ranges are configured for European, British and American markets.
Offered in standard, flexible , valve, flexi-valve and pencil torch body options.

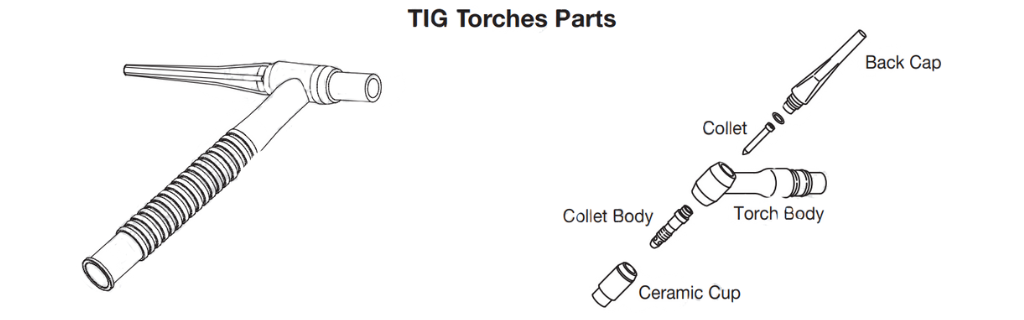

Torch Bodies
High temperature resistant rubber provides light weight and durable outer covers, cooper components ensure cooler running temperatures.

Handles/Switches
Offered in knurled and ribbed either with “snap on” or “rubber boot” options.
Switches offered in momentary, latching and “lever” options.

Cable Systems
Air and water cooled cable assemblies are offered in high performance rubber or PVC.
Unique cable end crimp systems ensure trouble free terminations.

Rear End Terminations
An extensive range of alternate terminations ensures worldwide compatibility.

Specifications Data

Model	WP 9	WP 17	WP 26	WP 24W	WP 20	WP 18	WP 185C
Cooling Method	Air Cooled	Air Cooled	Air Cooled	Water Cooled	Water Cooled	Water Cooled	Water Cooled
Rating: DC	110A	135A	180A	180A	225A	380A	410A
AC	80A	95A	125A	125A	160A	270A	290A
Duty Cycle:	35%	35%	35%	60%	60%	60%	60%
Electrode Size:	1.0 - 2.4	1.0 - 3.2	1.0 - 4.0	0.5 - 2.4	1.0 - 3.2	1.0 - 4.0	1.0 - 4.8
Min Water Flow	-	-	-	0.9L/min	1.0L/min	1.0L/min	1.0L/min
Min Water Inlet Pressure	-	-	-	2.0 Bar	2.0 Bar	2.0 Bar	2.0 Bar
Max Water Inlet Pressure	-	-	-	5.0Bar	5.0Bar	5.0Bar	5.0Bar
Max Water Inlet Tempertaure	-	-	-	500 C	500 C	500 C	500 C
Min cooling power	-	-	-	600W	700W	900W	1000W

Note: TIG Torches are available in 12 Ft or 25 Ft. Please specify the length you required when placing an order.
