Details

---

Use

• For undercut depth and length measurement （Scale range: 0-2mm）

Material

• Stainless steel

Features

• Easy to measure depth and length of undercut
• Capable of 0 adjustment with screw type of gauge head

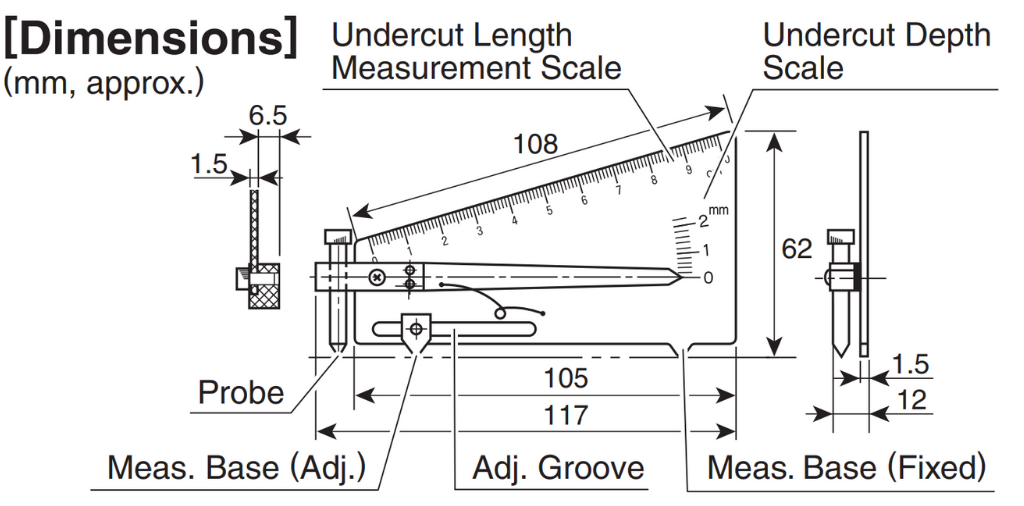

Specifications

• Measuring Range
  Depth: 0 ～ 2.0mm （Minimum reading: 0.2mm, Accuracy: ± 0.1mm）
  Length: 0 ～ 10cm
• Width of measurement base: ≒ 40mm

Zero Adjustment

1. Press this gauge to the measuring sample
2. Adjust Zero point adjustment screw to indicate 0, insuring that all three points contact surface

Measurement

• After 0 adjustment, put the tool on undercut and the spring will move indicator arm to show depth of undercut on graduation
