Details

---

Use

• For a wide variety of welding measurements

Material

• Stainless steel

Features

• Additional functions for measurement of
  - external diameter of circular workpiece
  - swelling of pressure welded reinforcing iron
  - width of bead weld
• Bead stride width: 53mm
• Bevel angle range: 0-70°
• Higher accuracy undercut measurement function

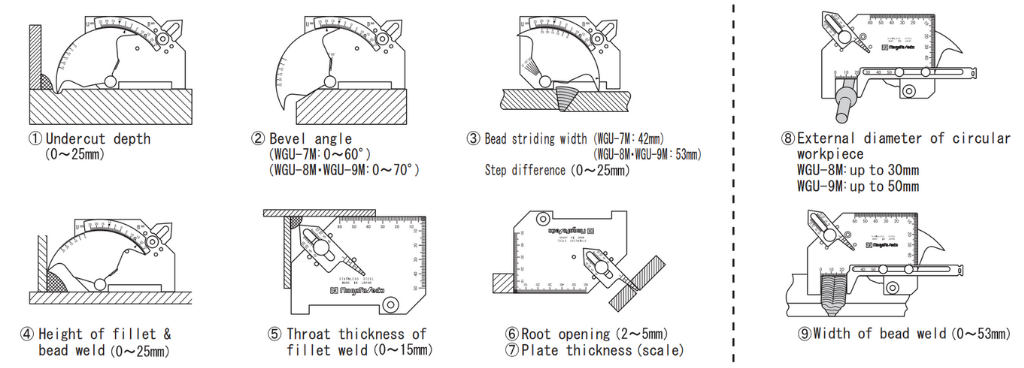

Measurement Function

Additional Functions

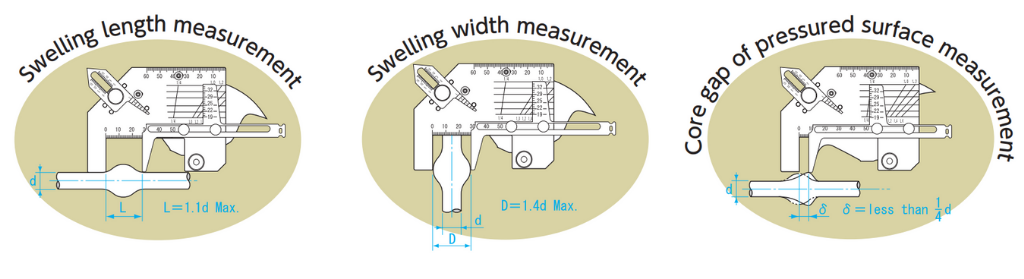

• Provides quick way to measure the diameter of welded rebar to insure proper dimensions of weld seam.
• Scale marked for material diameter （φ19, 20, 25, 29, 32） corresponding to various rebar diameters, and amount of expansion （1/4, 1.0～1.6）. You can quickly find the ratio by reading the intersection of the two scale lines.
